BT30 No Powered Spindle Kit, 5000RPM Cylinder Pneumatic Semi-Automatic Tool Changer Spindle Motor with Bracket Used for Carving, Drilling, Metal Cutting

From the brand

About Us

YIDOFENG is mainly engaged in CNC machinery manufacturing. Our products mainly include various types of motors , Linear Stage Motion Actors, Worm Gear Gearbox, Micro CNC engraving machine and accessories,etc.

YIDOFENG always adheres to the principle of quality first and operates our CNC business,Our technical team will continue to develop more CNC products and also provide higher quality services to our customers.

CNC Touch Probe

Mini lathe accessories

Best seller

Yidofeng Motor

Worm Gear Gearbox

CNC engraving machine

DIY CNC Router Control

Linear Stage Motion Actuator

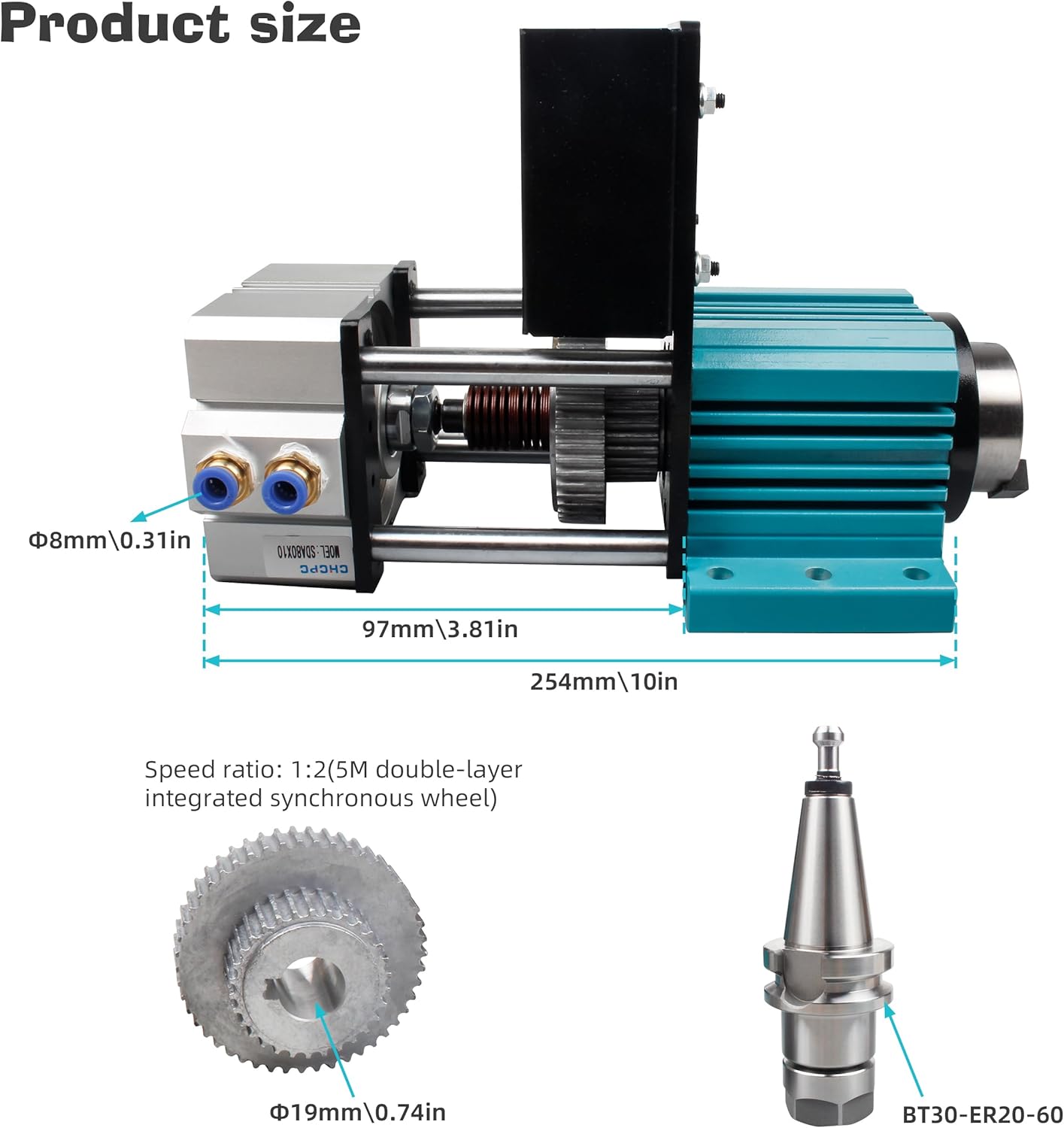

【Specifications 】BT30-ER20 tool holder, spigot model BT30-45°; 5pcs Deep groove ball bearings are used, the shaft is heat treated and fully ground with ultra-high hardness; the taper runout inside the spindle is 0.02~0.05mm; Cylinder model ROANY SDA 80*10, 0.8 pneumatic pressure, the pulling force is 300kg; Maximum speed 5000rpm, this product is a powerless tool changer spindle without motor, so the power is determined according to the motor you equipped.
【Used for 】 mainly used for roughing: drilling, tapping, milling head, milling and other heavy cutting, not suitable for finishing.suitable for home computers, small machines, microcomputers, and to achieve automatic tool change function.

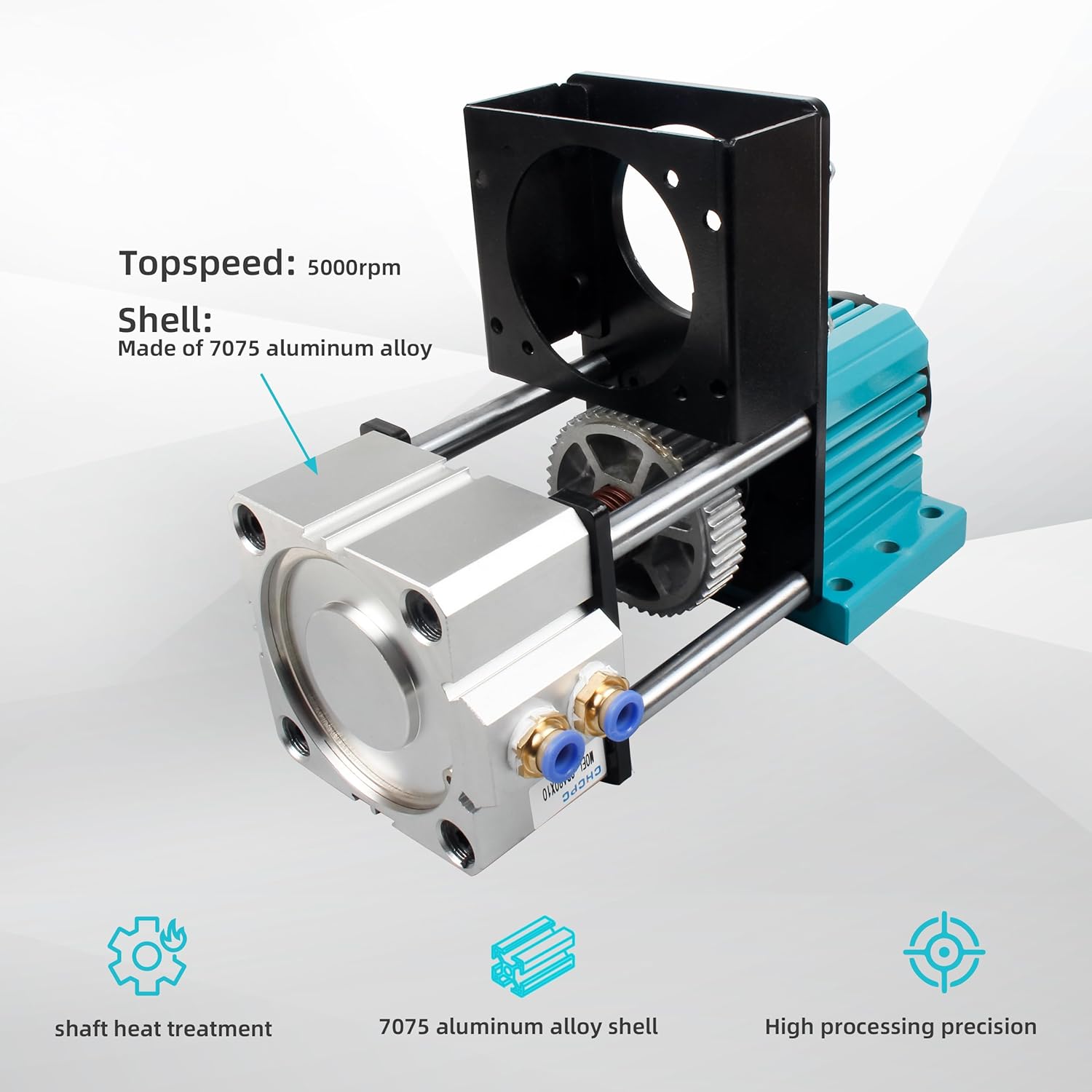

【Material】Shell made of 7075 aluminium alloy; the shaft adopts heat treatment, ultra-high hardness, and full grinding
【Quasi-stop solution】Adopts servo motor as power, the servo motor itself has precise stop function, it can stop at the same angle every time.

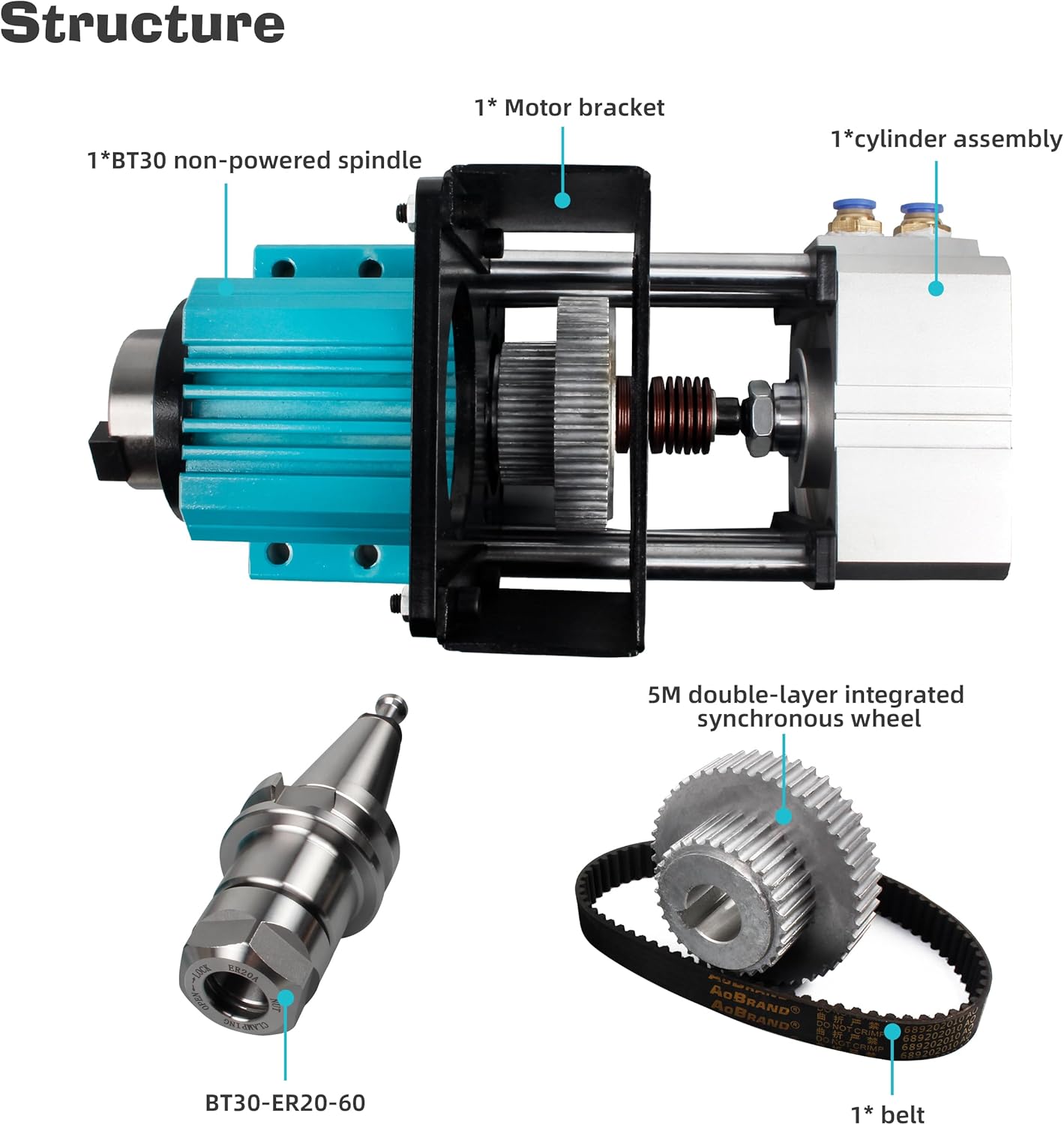

【Pacakge include】1pc BT30 non-powered spindle with cylinder assembly + 1pc Motor bracket + 1pc 5M double-layer integrated variable speed timing wheel + 1pc belt
